Stackable Vial Storage Trays

Description

Storage that grows with you

Each tray holds vials upright in their own cell, with a recessed panel on the front of each tray. Trays lock together with a stacking lip, and one lid closes the top of the stack. Start with a tray and lid, then add extra trays whenever you need more space. Trays for 3 ml and 10 ml vials share footprints and lids, so you can mix both kinds in one stack.

Sizes

For 2 ml and 3 ml vials (45 mm tall in the stack):

• 3 ml, 10 vials (5 x 2): 98 x 45 mm.

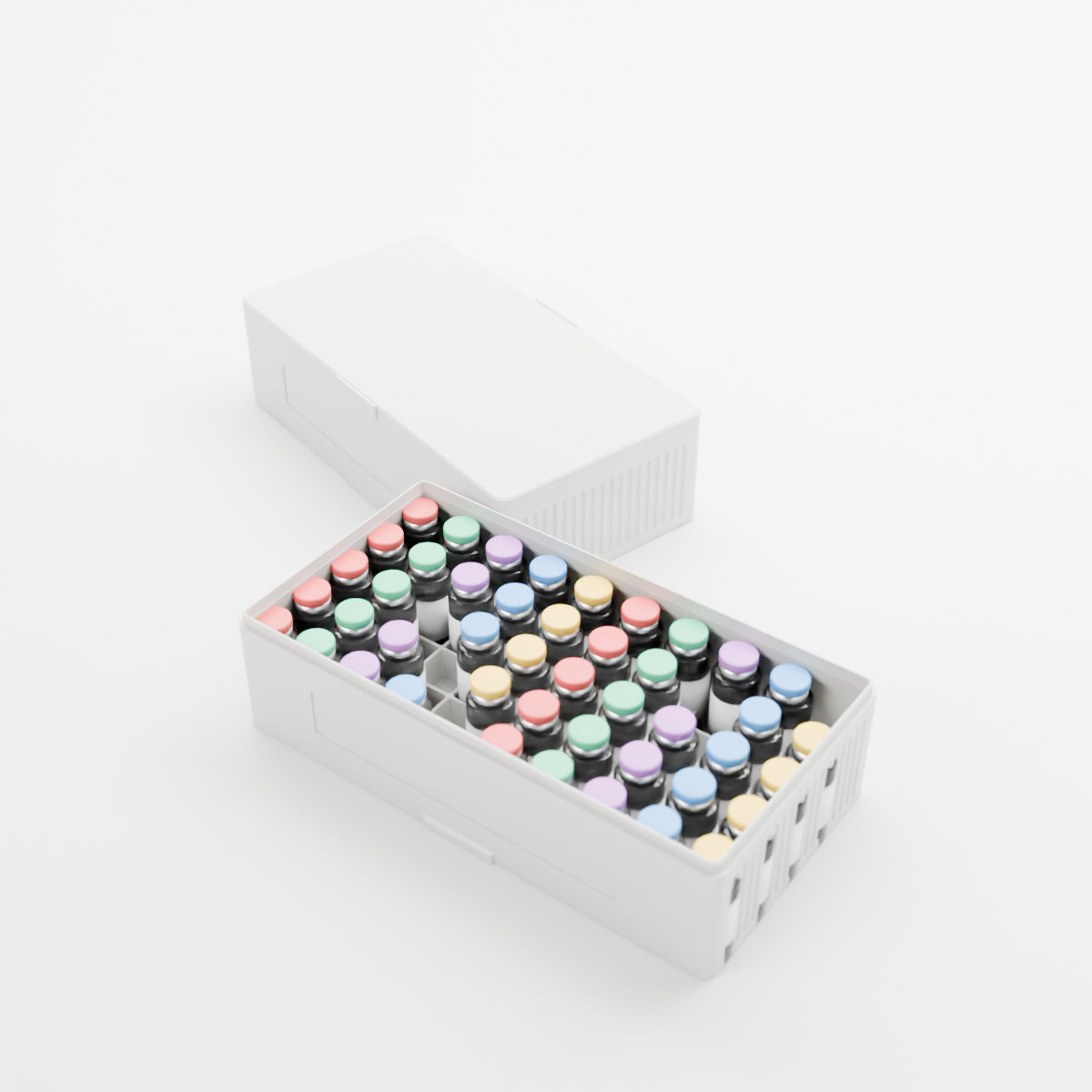

• 3 ml, 50 vials (10 x 5): 186 x 98 mm.

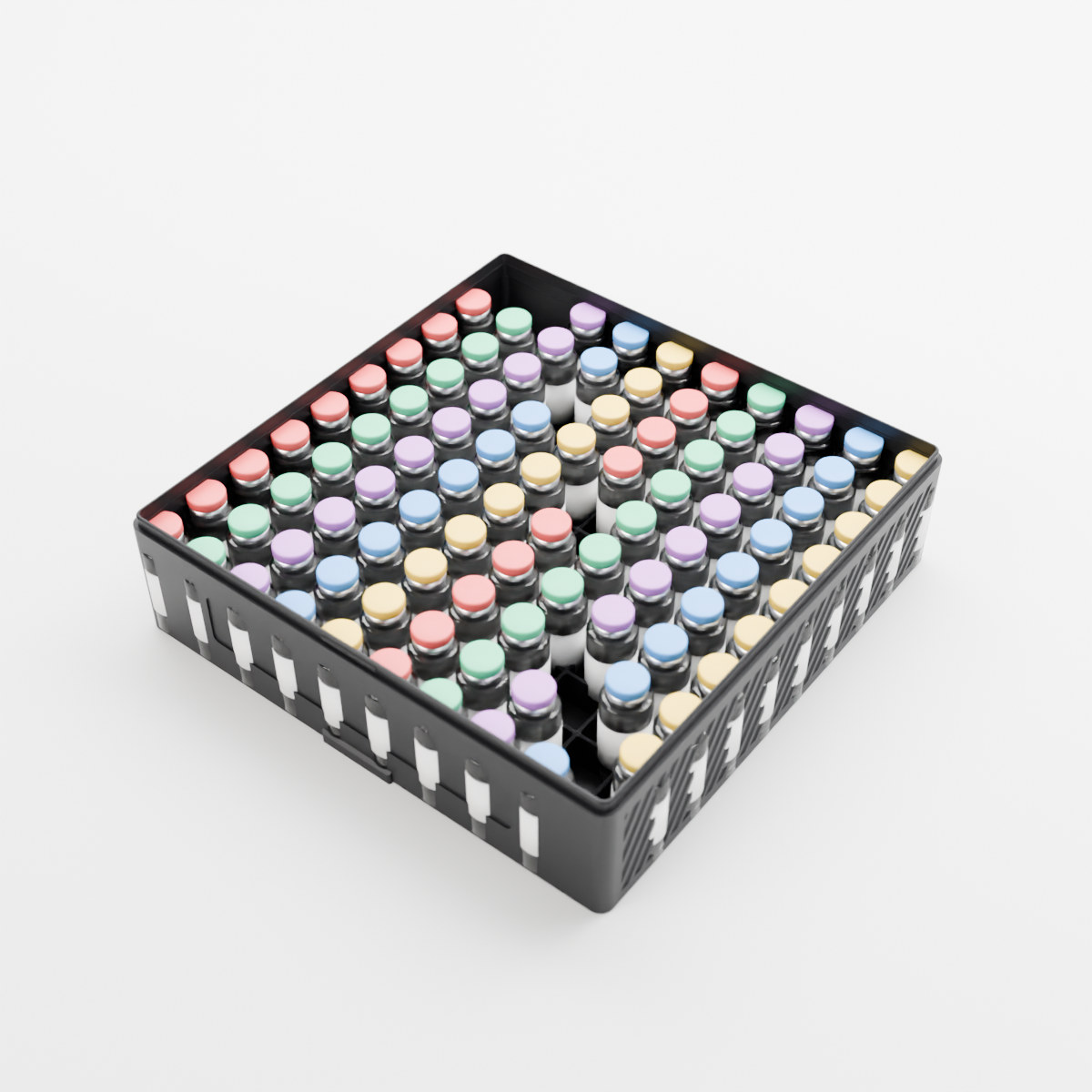

• 3 ml, 100 vials (10 x 10): 186 x 186 mm.

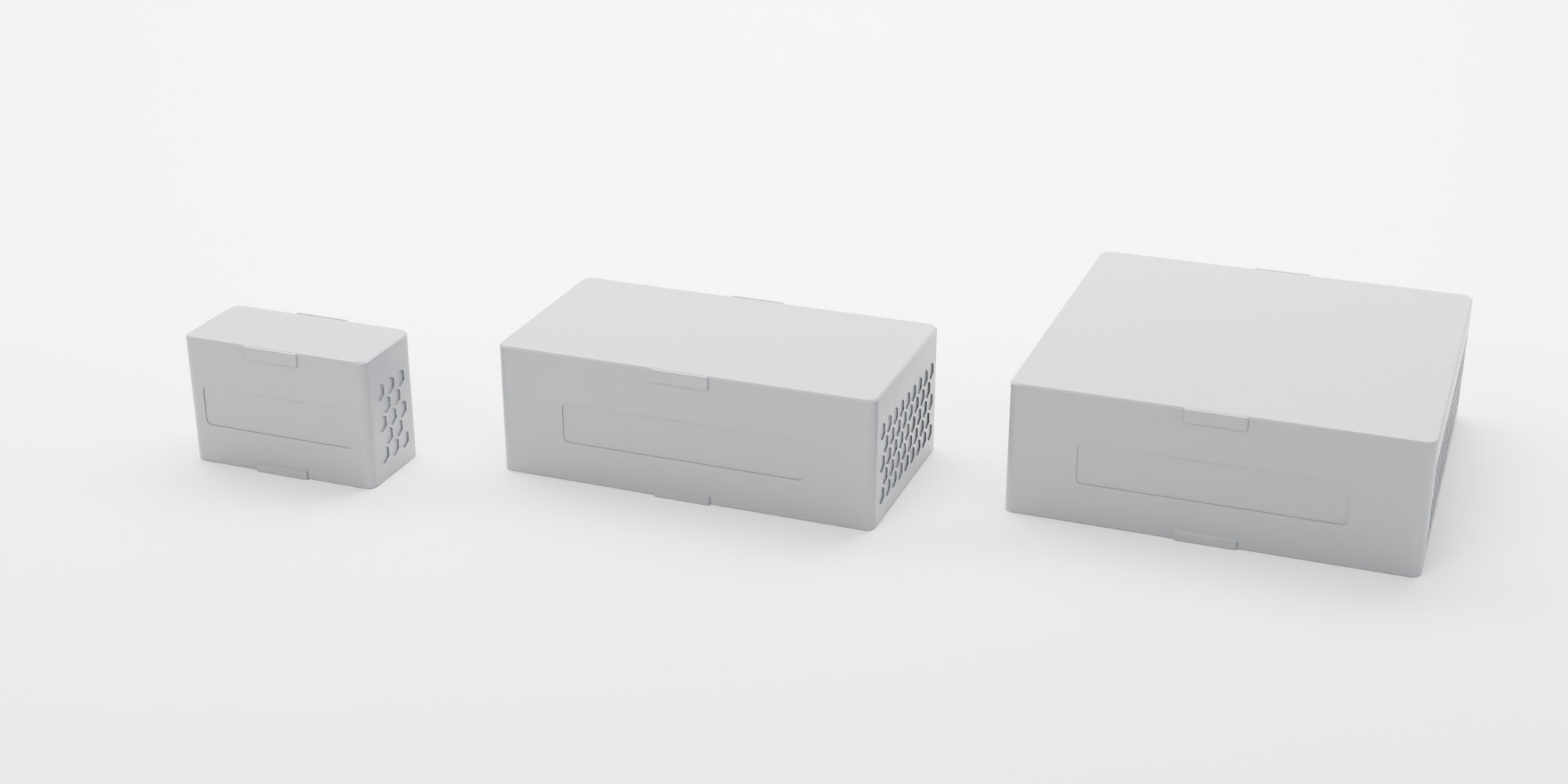

For 10 ml vials (58 mm tall in the stack):

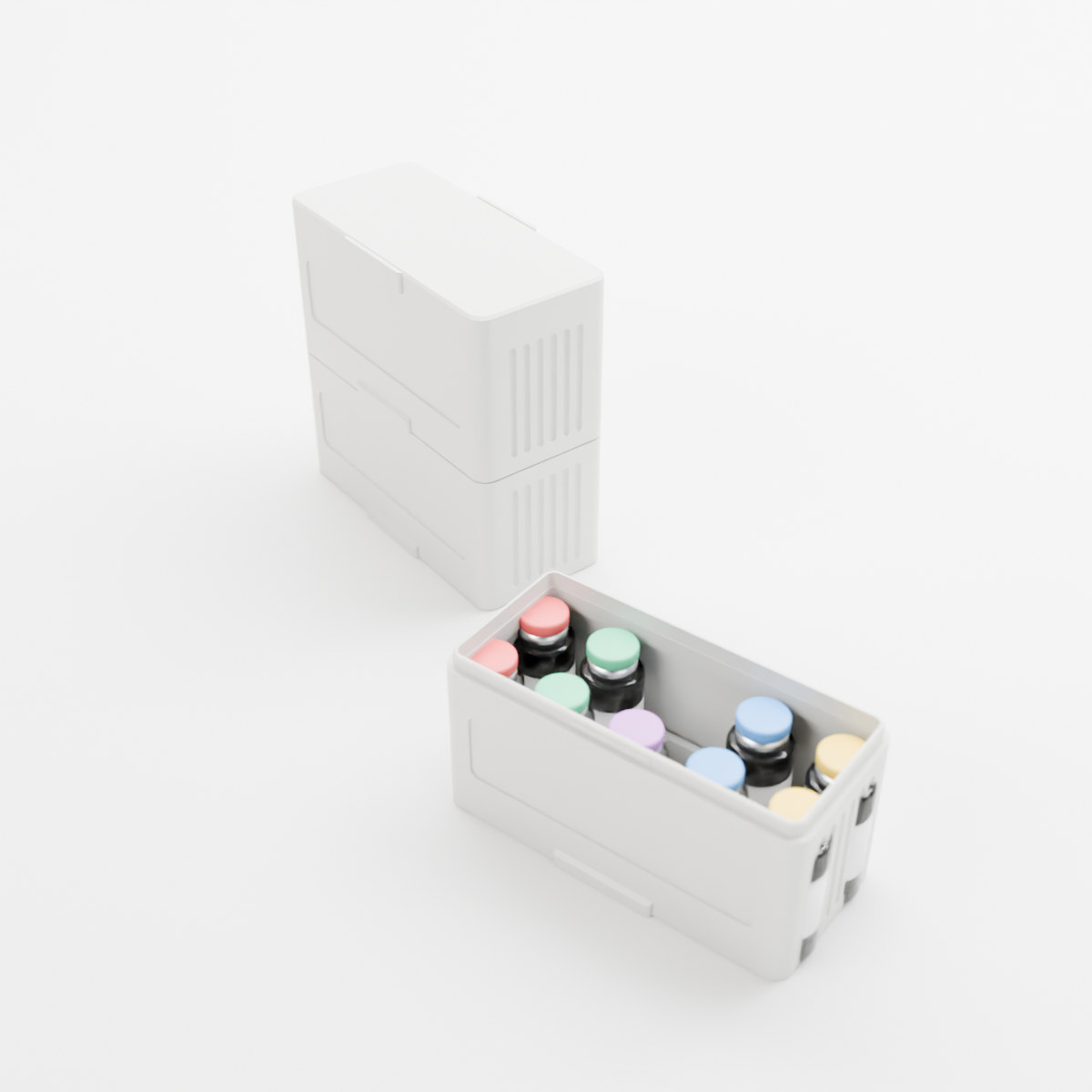

• 10 ml, 3 vials: 98 x 45 mm.
• 10 ml, 21 vials (7 x 3): 186 x 98 mm.

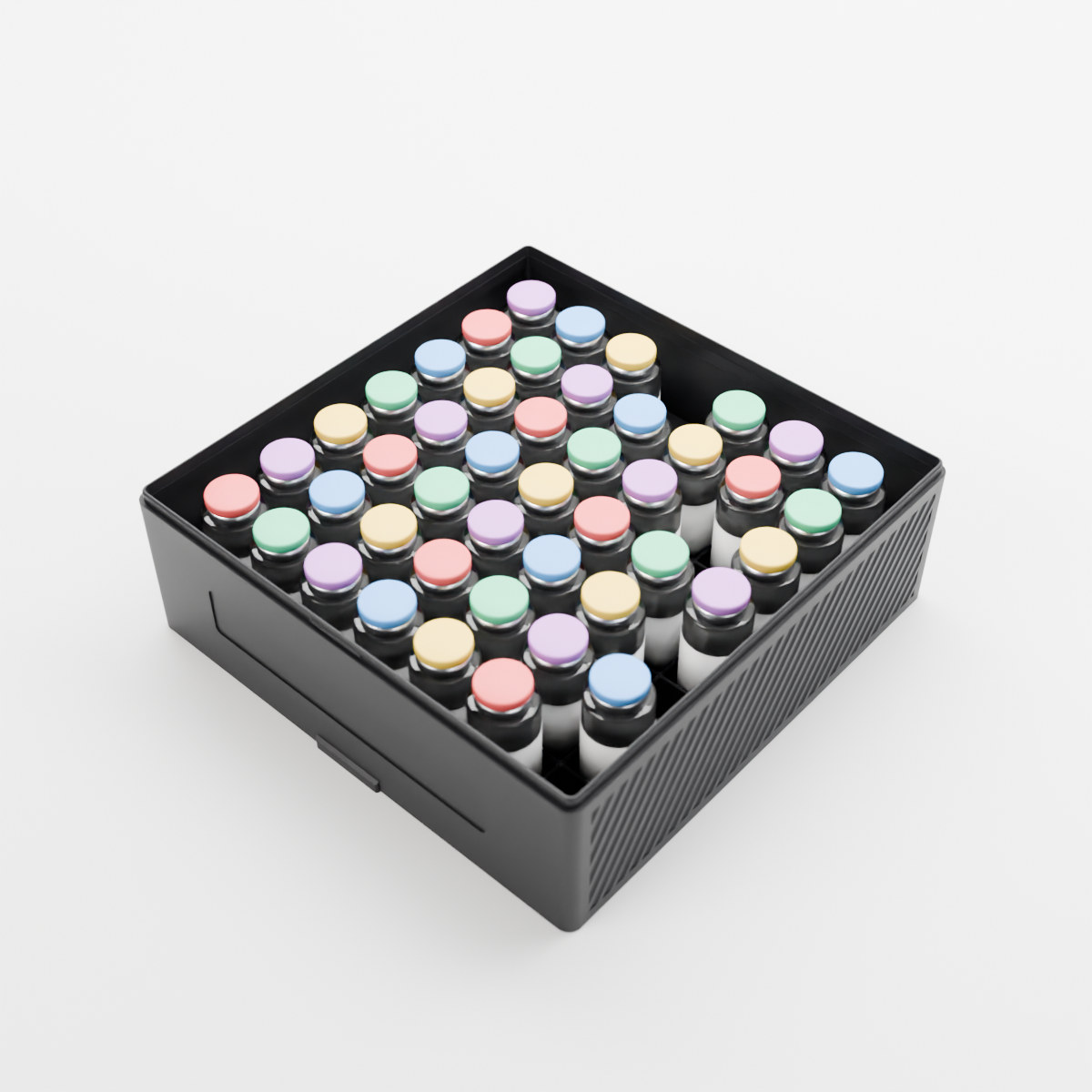

• 10 ml, 49 vials (7 x 7): 186 x 186 mm.
• Mixed, 81 vials: 21 x 10 ml and 60 x 3 ml, 186 x 186 mm, designed to bring the caps close to level.

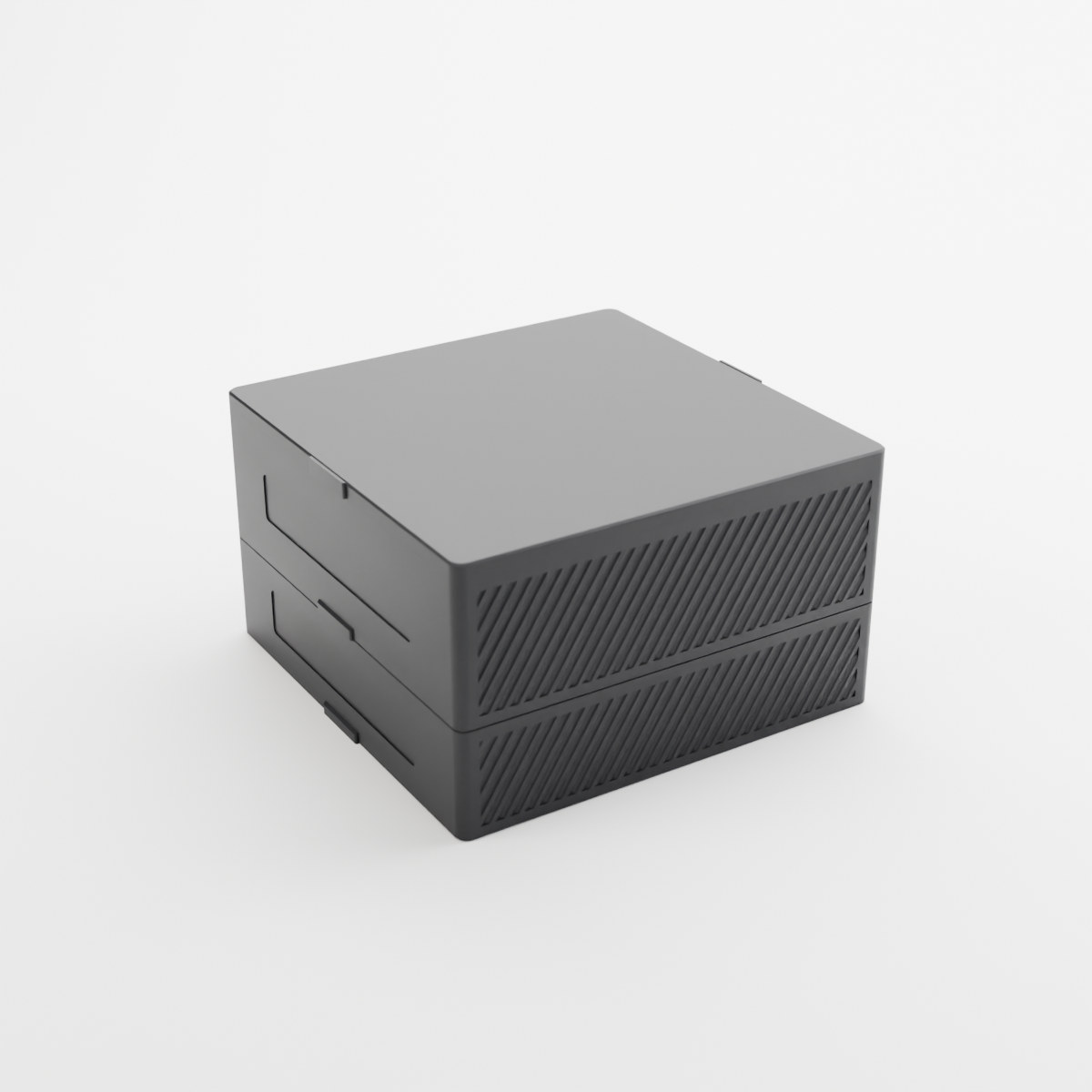

• Mixed set, 181 vials: a 3 ml 100-vial tray, a Mixed 81 tray and one lid, stacked. 160 x 3 ml and 21 x 10 ml, about 109 mm tall, 186 x 186 mm. Less than buying the two separately.

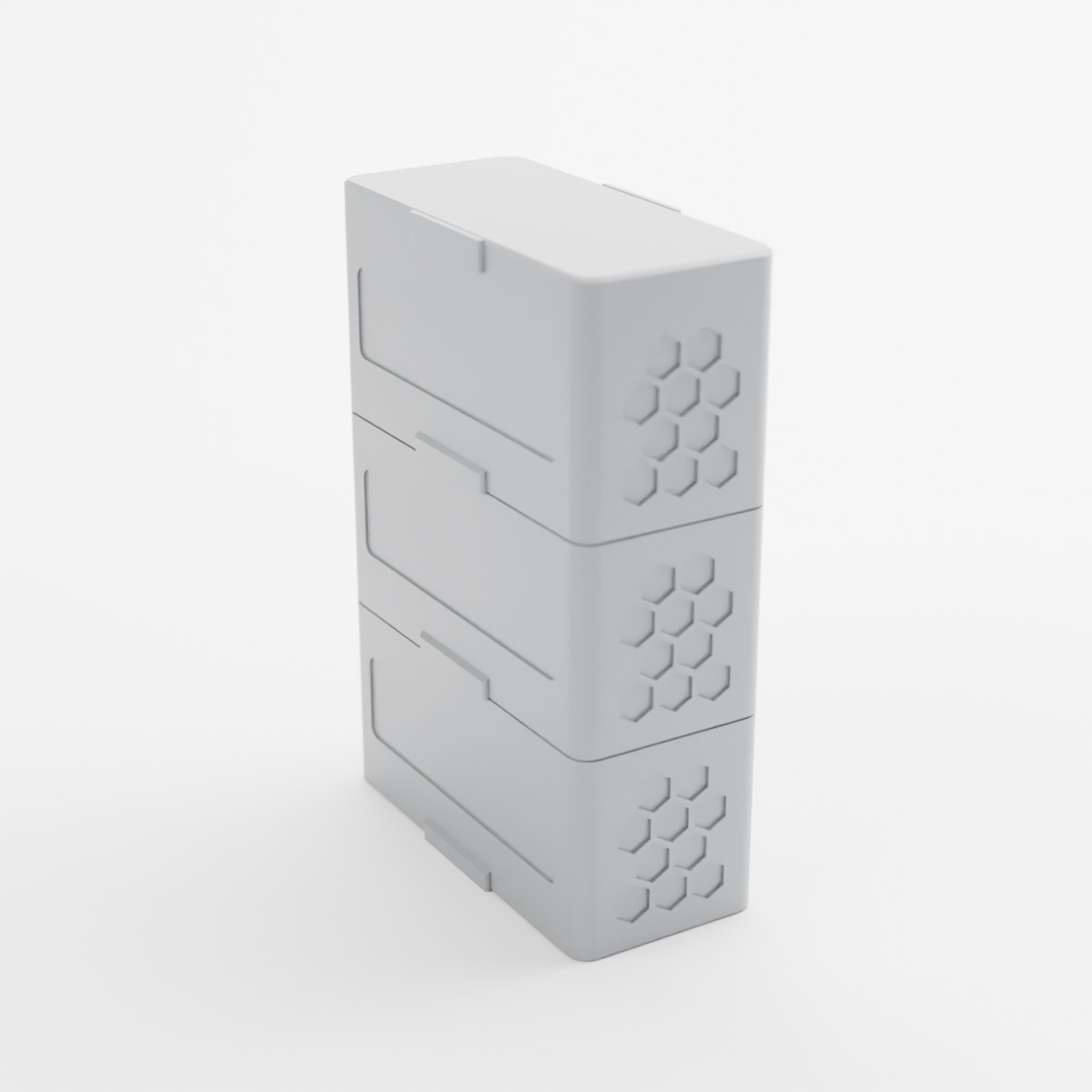

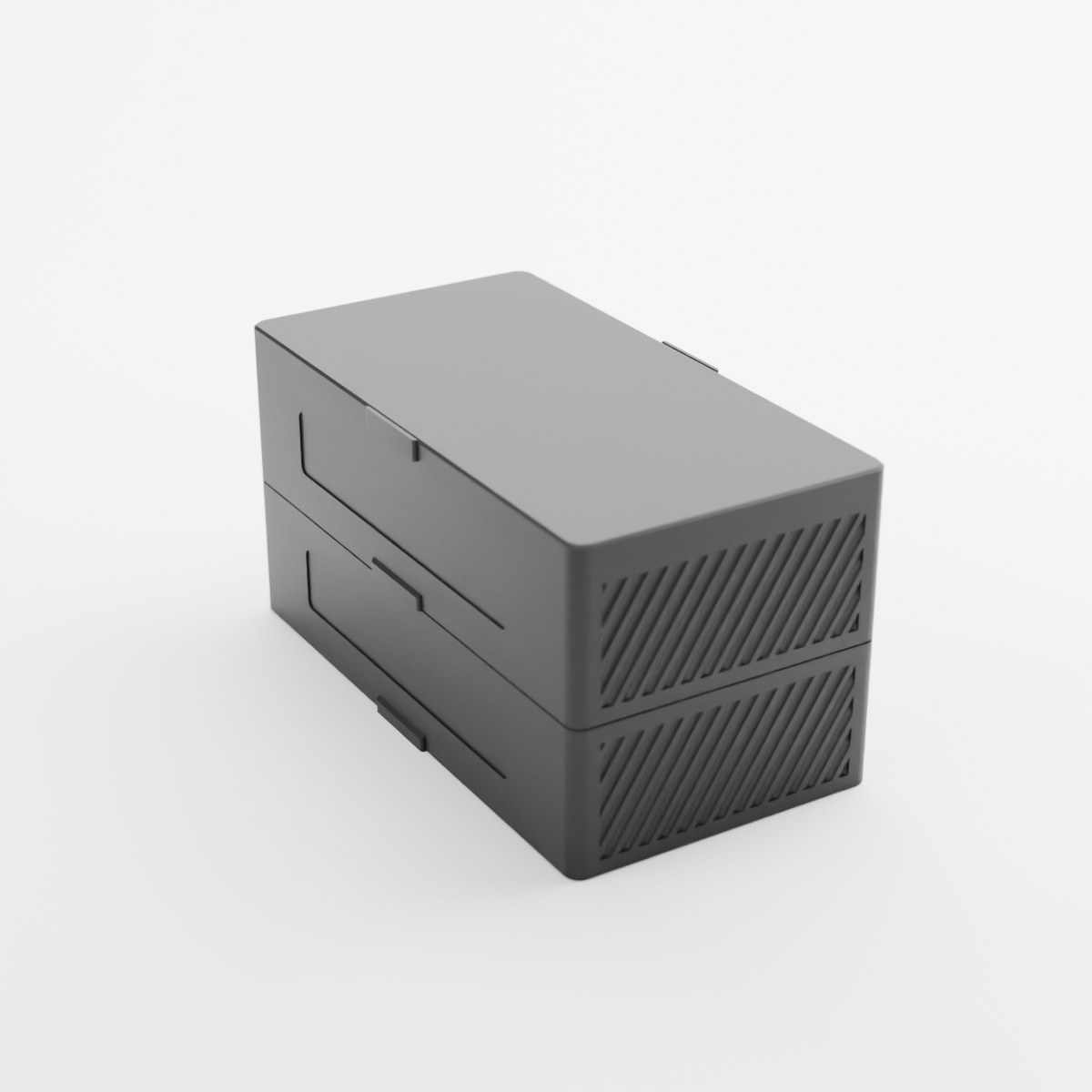

Add about 6 mm for the lid. A 4 mm locating lip on top of each tray makes them easy to line up and slot together. Trays stack with any tray of the same footprint, 3 ml or 10 ml, under the same lid: 98 x 45 mm trays together, 186 x 98 mm trays together, and 186 x 186 mm trays together.

Choose your pack

• 1 tray + lid: one tray with a matching lid. Start here.
• 2 or 3 trays + lid (3 ml sizes): a ready-made stack. Each extra tray in the pack costs less than buying it on its own.
• Extra tray (no lid): add it under your lid to grow a stack you already have.

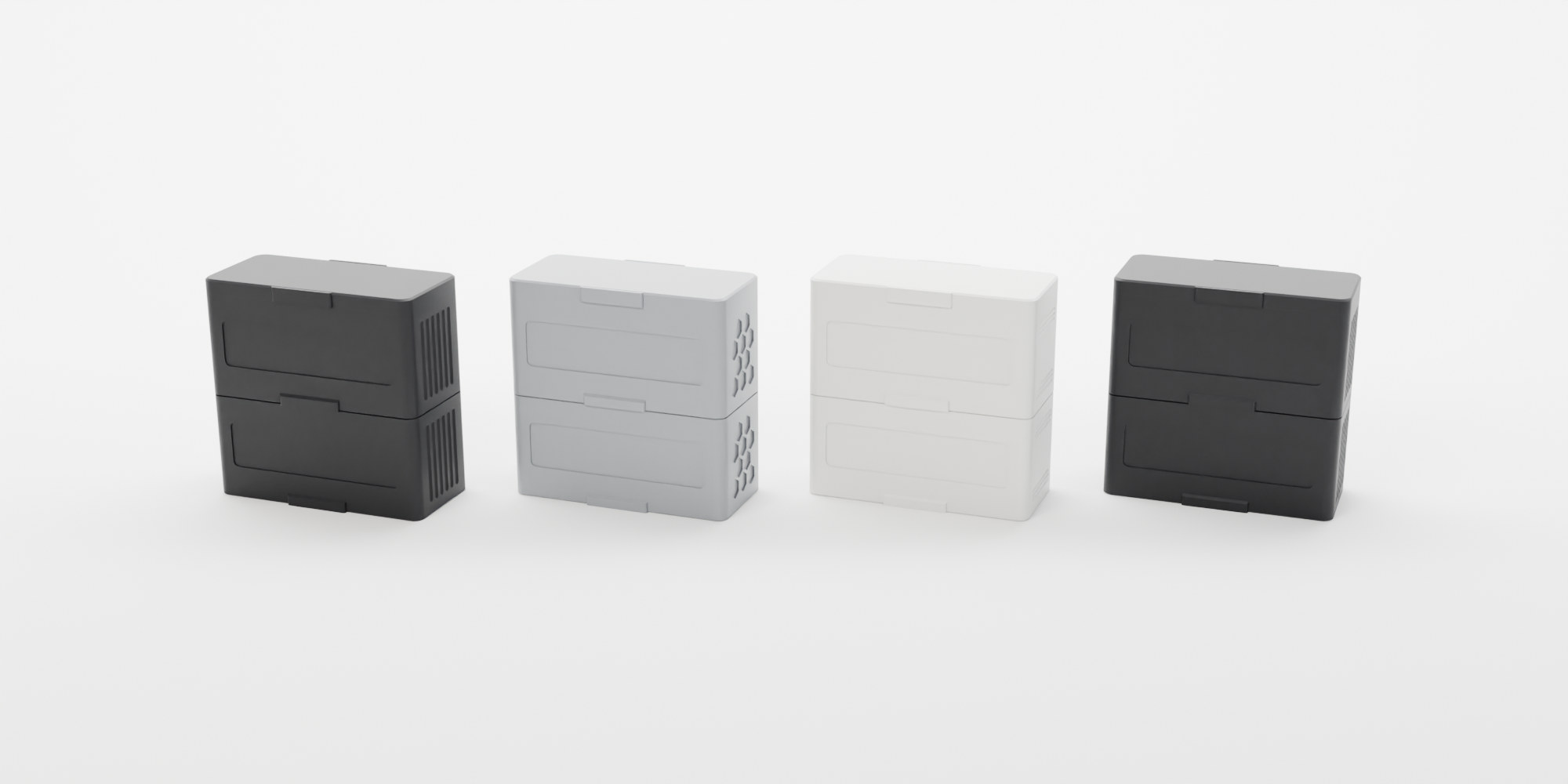

Four styles, made to match

• Twist: diagonal ribs.
• Flutes: classic vertical fluting.
• Hexagon: a honeycomb of recessed hexagons.
• Smooth: clean panels with fine grip lines.

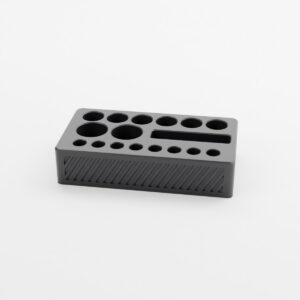

Available in Black, White or Grey, to match our pen cases, desk stand and vial organiser. Size and colour photos for the 10 ml and Mixed trays show the Twist style.

Details

• 3 ml cells: 16.5 mm across, 14 mm deep, a snug fit for 2 ml and 3 ml vials up to 16.2 mm across (most 3 ml vials are about 16 mm) and up to 42 mm tall including the cap
• 10 ml cells: 22.4 mm square, 20 mm deep. Fits 10 ml vials up to 22 mm across and 56 mm tall including the cap
• Mixed tray: 3 ml cells sit raised to bring the 3 ml caps close to level with the 10 ml caps (3 ml vials up to 38 mm tall in this tray)
• Stacking lip and groove keep the stack from sliding apart
• Trays and lids click together. Grip tabs (1.2 mm) on the front and back of each tray base and lid make them easy to separate
• Recessed panel on the front of every tray
• Printed in PETG: tough and easy to wipe clean. Not dishwasher safe.
• Made to order in the UK

Custom branding

Want these with your own logo? Get in touch for a quote.

This is a storage accessory, not a medical device. Store all products as directed by their supplier. Dispose of used needles and syringes in a proper sharps bin.
